350mA Phase Cut Dimmable LED Driver

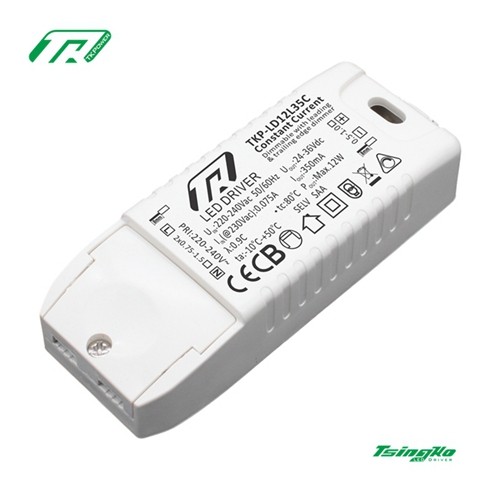

12W 36V 350mA constant current phase cut dimmable LED Driver

Item No: TKP-LD12L35C
Input Voltage: 220-240Vac
Output Voltage: 24-36Vdc
Output Current:350mA
Working Mode:Constant Current
Dimming Mode:Triac Dimmable, Phase Cut Dimmable
Warranty: 3yrs/5yrs optional


12W 36V 350mA Constant Current Phase Cut Dimmable LED Driver


FEATURES:
*Simple installation and excellent performance;
*Compatible with most leading&trailing led dimmers;
*SELV output by isolated design;
*100% burn-in testing with full load;
*Protections:opencircuit, shortcircuit,overload, overtemperature.
*Protection Class II
*Design acc. to EN and Australia LVD and EMC Standards;
STANDARDS:
*EN61347-1:2015
*EN61347-2-13:2014/A1:2017

*EN62493:2015;

*EN55015:2013;EN61547:2009;

*EN61000-3-2:2014;EN61000-3-3:2013


Tsingko triac dimmable LED driver work well with Lutron, Clipsal, Dynalite, Dalitek, Philips,Osram, Schneider, Casambi, Crestron  lighting control system.


MODEL

TKP-LD12L35C

SPECIFICATION

Overload & short-circuit   protection

100% burning test

3 years warranty

Output

Output voltage

24-36Vdc

Output current

350mA

Current range

330-370mA

Rated Power

12W Max.

Primary terminal

1Way Terminal

Input

Input voltage

220-240Vac MAX:265V

Input current @230Vac &full load

≤75mA

No-load loss

≤1W

Frequency

50/60HZ

Power factor

0.9C (@230Vac &full load)

Efficiency

83% (@230Vac &full   load)

Secondary terminal

1Way Terminal

Dimming

Dimming type

Triac, Leading edge &   trailing edge dimmable

Protection

No load protection

No load voltage under 44Vdc

Short circuit protection

OK

Overheating protection

130

Surge protection

500Vac

International protection

IP20

Using Environment

ta

-10- +50

tc

80

Using condition

INDEPENDENT

Store condition

-40- +80,10-95RH

Lifetime

20,000h at full load

LVD & EMC

LVD standards

EN61347-1EN61347-2-13

Protection class

CLASS   2

Conduct & radiate

EN55015

Harmonic

EN61000-3-2

Certification

CE CB SAA

Dimension

LxWxH

109mmx41mmx23mm
