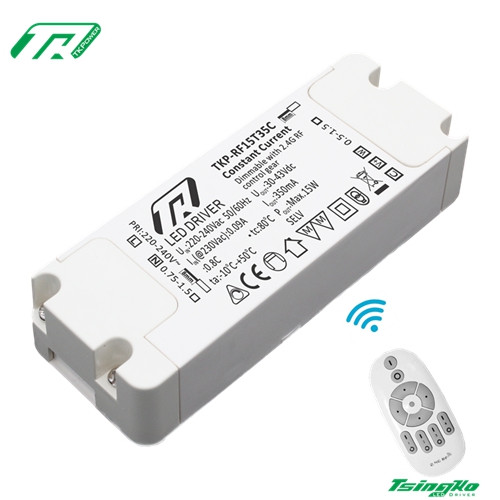

15W 2.4G RF wireless CCT dimming LED driver for LED downlight

It is a CCT dimming LED driver, control by a RF remoter.

*Smooth dimming down to 3%
*Easy change from 3000K through to 6000K CCT
*Control of up to 100 downlighters from up to 15m away
*Use in 4 different rooms or sections of a room via the 4 channels

Item No: TKP-RD15T30C
Input Voltage: 220-240Vac
Output Voltage: 30-43Vdc
Output Current:350mA
Working Mode:Constant Current
Dimming Mode:2.4G RF remote control
Warranty: 3yrs/5yrs optional

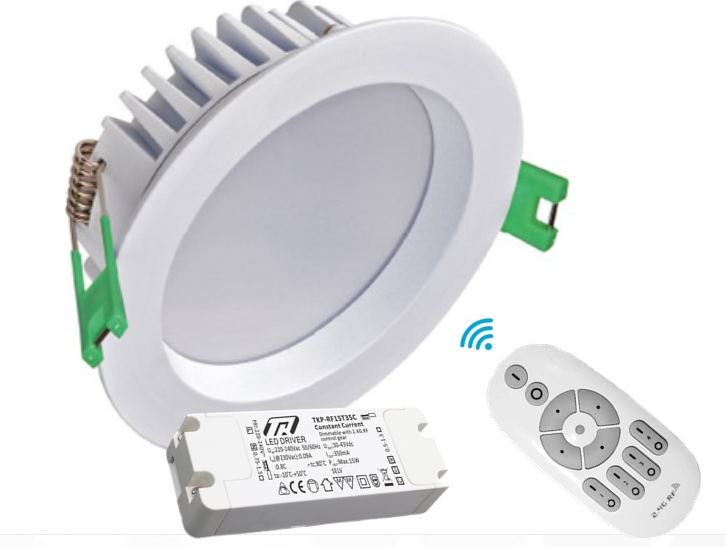

Tsingko 2.4G  Wireless CCT dimmable LED driver for LED Downlight


Use 2.4G RF remoter to control:

  • Smooth dimming down to 3%

  • Easy change from 3000K through to 6000K colour temperatures

  • Control of up to 100 downlighters from up to 15m away

  • Use in 4 different rooms or sections of a room via the 4 channels

Or use a conventional wallswitch to:

  • Change between colour temperatures – 3000K – 4000K – 5000K

  • Dim down on to nightlight mode


 Tsingko 2.4G  Wireless CCT dimmable LED driver for LED Downlight







Tsingko 2.4G  Wireless CCT dimmable LED driver for LED Downlight







 Data sheet 15W 2.4G CCT adjustable dimming led driver




ModelTKP-RF15TzzC

Quick description15W 2.4G CCT dimming LED Driver constant current
InputInput voltage220-240Vac 50-60Hz
Input current0.09A
Power factor0.9C
Primary terminal0.75-1.5mm2 1Way
OutputOutput voltage/Output current35-50Vdc/300mA30-43Vdc/350mA27-38Vdc/400mA23-33Vdc/450mA
21-30Vdc/500mA19-27Vdc/550mA18-25Vdc/600mA17-24Vdc/650mA
15-21Vdc/700mA14-20Vdc/750mA13-19Vdc/800mA13-18Vdc/850mA
12-17Vdc/900mA11-16Vdc/950mA10-15Vdc/1000mA10-14Vdc/1050mA
9.5-13.5Vdc/1100mA8.5-12Vdc/1200mA

Rated Power15W max.
Secondary terminal0.5-1.5mm2 1Way
FeaturesDimmingNC
Efficiency0.8
Dimension (LxWxH)88x38x21mm
Weight75g
ColorWhite
Case materialPoly cabinet 94V-0
MTBF>20,000 hours at full load
ProtectionNo-load power loss0.5W
Short-circuit ProtectionOk
Overload ProtectionOK
Overheating protection130℃
Surge protection500V
International protectionIP20
Use conditionta ambient temp.-10℃-+50℃
tc max. case temp.80℃
Store condition-40℃-+80℃, 10-95%RH
Using conditionIndependent
LVD & EMCLVD standardsEN61347-1,EN61347-2-13
Protection classCLASS 2
Conduct & radiateEN55015
CertificationTUV LVD+EMC,CE,CB,SAA
