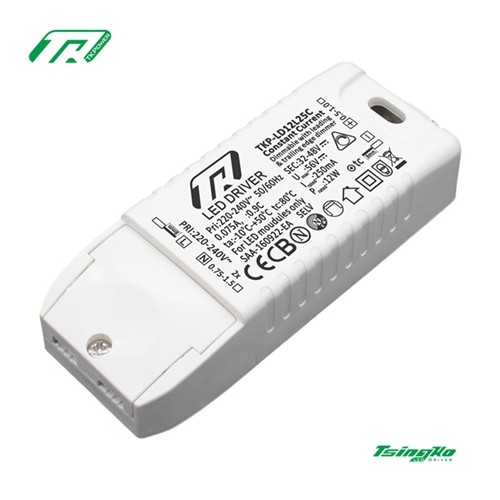

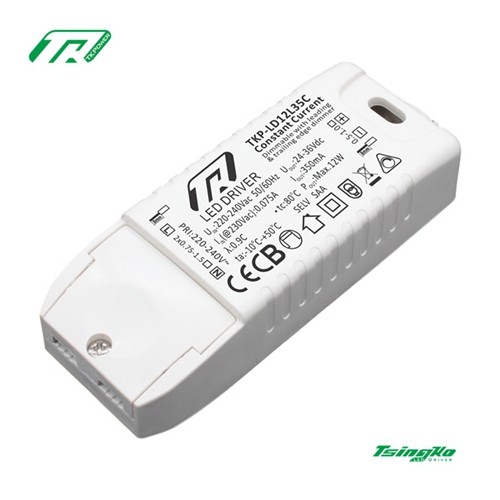

12W Phase Cut Dimmable LED Driver Constant Current

12W Phase Cut Dimmable LED Driver Constant Current

12W constant current phase cut dimmable LED Driver.triac diimmable LED Driver

Item No: TKP-LD12LxxC
Input Voltage: 220-240Vac
Output Voltage: 8-60Vdc
Output Current:200-1000mA
Working Mode:Constant Current
Dimming Mode:Triac Dimmable, Phase Cut Dimmable
Warranty: 3yrs/5yrs optional

12W Phase Cut Dimmable LED Driver Constant Current

200mA/250mA/300mA/350mA/400mA/450mA/500mA/550mA/600mA/650mA/700mA/750mA/800mA//850mA//900mA//950mA/

1000mA triac dimmable LED driver

FEATURES:
*Simple installation and excellent performance;
*Compatible with most leading&trailing edge led dimmers;
*SELV output by isolated design;
*100% burn-in testing with full load;
*Protections:opencircuit, shortcircuit,overload, overtemperature.
*Protection Class II
*Design acc. to EN and Australia LVD and EMC Standards;
STANDARDS:
*EN61347-1:2015
*EN61347-2-13:2014/A1:2017

*EN62493:2015;

*EN55015:2013;EN61547:2009;

*EN61000-3-2:2014;EN61000-3-3:2013

Tsingko triac dimmable LED driver work well with Lutron, Clipsal, Dynalite, Dalitek, Philips,Osram, Schneider, Casambi, Crestron lighting control system.

	Model	TKP-LD12LzzC
	Quick description	12W leading & trailing dimmable
Input	Input voltage	220-240Vac 50-60Hz
	Input current	0.075A
	Power factor	0.9C
	Primary terminal	0.75-1.5mm² 1Way
Output	Output voltage/Output current	42-60Vdc/200mA	32-48Vdc/250mA	28-40Vdc/300mA	24-36Vdc/350mA
		21-30Vdc/400mA	18-27Vdc/450mA	15-24Vdc/500mA	15-22Vdc/550mA
		14-20Vdc/600mA	13-19Vdc/650mA	12-18Vdc/700mA	12-16Vdc/750mA
		11-15Vdc/800mA	10-14Vdc/850mA	10-13.5Vdc/900mA	9-13Vdc/950mA
		8-12Vdc/1000mA
	Rated Power	12W max.
	Secondary terminal	0.5-1.0mm² 1Way
Features	Dimming	Dimmable with most leading & trailing edge dimmers
	Efficiency	0.81
	Dimension (LxWxH)	109x41x23mm
	Weight	65g
	Color	White
	Case material	Poly cabinet 94V-0
	MTBF	>20,000 hours at full load
Protection	No-load power loss	0.5W
	Short-circuit Protection	Ok
	Overload Protection	OK
	Overheating protection	130℃
	Surge protection	500V
	International protection	IP20
Use condition	ta ambient temp.	-10℃-+50℃
	tc max. case temp.	80℃
	Store condition	-40℃-+80℃, 10-95%RH
	Using condition	Independent
LVD & EMC	LVD standards	EN61347-1、EN61347-2-13
	Protection class	CLASS 2
	Conduct & radiate	EN55015
	Certification	Nemko LVD+EMC,CE,CB,SAA-160922-EA
